阻抗:4Ω

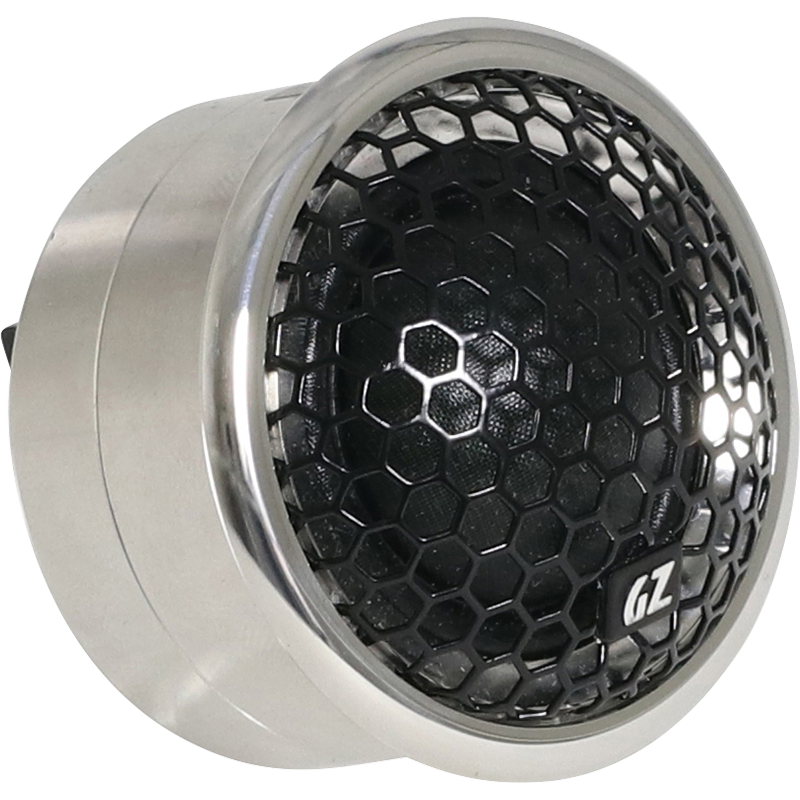

RMS功率:140W| Model | High-End Tweeter |
|---|---|
| Diameter | 28 mm / 1.10″ |
| Power handling (RMS/max.) | 100 / 150 Watts |
| Impedance | 4 Ohms |
| Efficiency | 90 dB |
| Frequency Response | 2000 Hz – 30 kHz |
| Cone | 2 layer coated silk |
| Mounting Ø | 48 mm / 1.89″ |
| Mounting depth | 35 mm / 1.38″ |
| Resonance frequency (Fs) | 770 Hz |

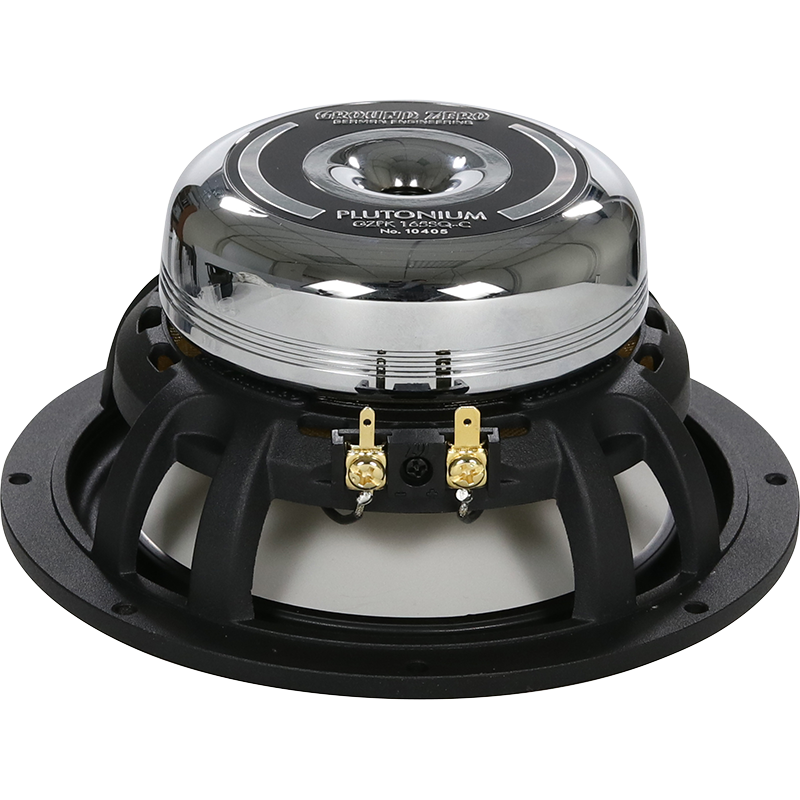

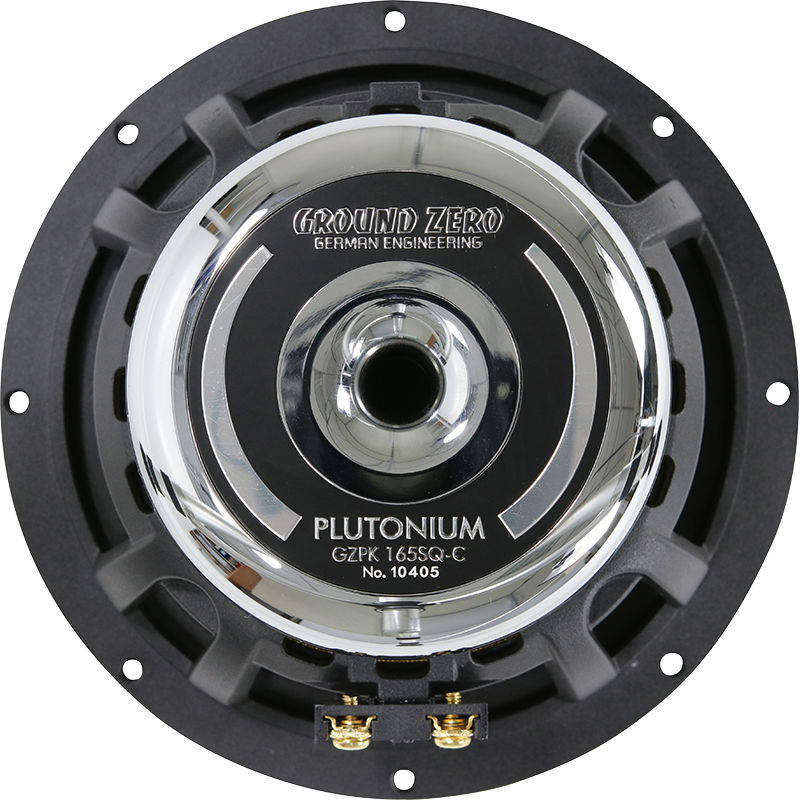

| Model | High-quality SQ midwoofer |
|---|---|
| Diameter | 165 mm / 6.5″ |
| Power handling (RMS/max.) | 140 / 200 Watts |
| Impedance | 4 Ohms |
| Efficiency | 89 dB |
| Frequency Response | 40 Hz – 5000 Hz |
| Voice coil | 38 mm / 1.5″ |
| Cone | Aluminum-ceramics |
| Mounting Ø | 144 mm / 5.67″ |
| Mounting depth | 70 mm / 2.76″ |
| Resonance frequency (Fs) | 38 Hz |
