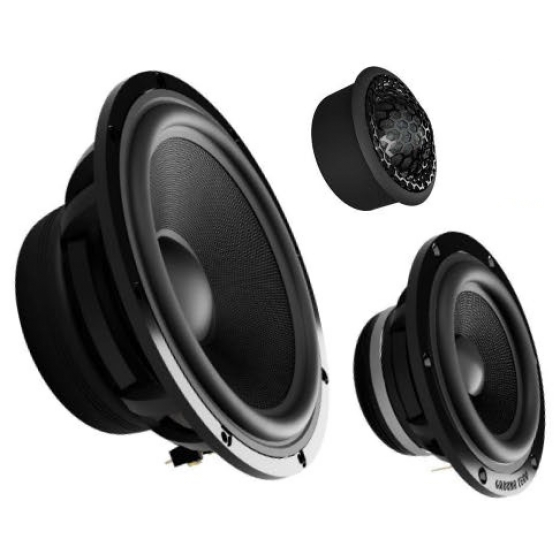

德國精品 Ground Zero 三音路喇叭組GZNC 165.3SQ-ACT
阻抗:4Ω
RMS功率:230W
最大功率:360W
響應頻率:35HZ -25KHZ
靈敏度:90dB
安裝深度:68mm
● 建議售價：59,000 ( 不含線材/工資 )
| Model |
High-Performance Tweeter |
| Diameter |
28 mm / 1.1″ |
| Power Handling (RMS/max.) |
90 / 140 Watt |
| Impedance |
4 Ohm |
| Efficiency |
91 dB |
| Frequency Response |
2000 Hz – 25 kHz |
| Schwingspule |
28 mm / 1.1″ |
| Recommended High Pass Filter |
3000 Hz @ 12 dB/oct |
| Membran Layout |
Coated silk dome |
| Magnet Material |
Neodymium |
| Mounting Ø |
48 mm / 0.19″ |
| Mounting Depth |
29 mm / 1.14″ |
| Resonance Frequency (Fs) |
1350 Hz |

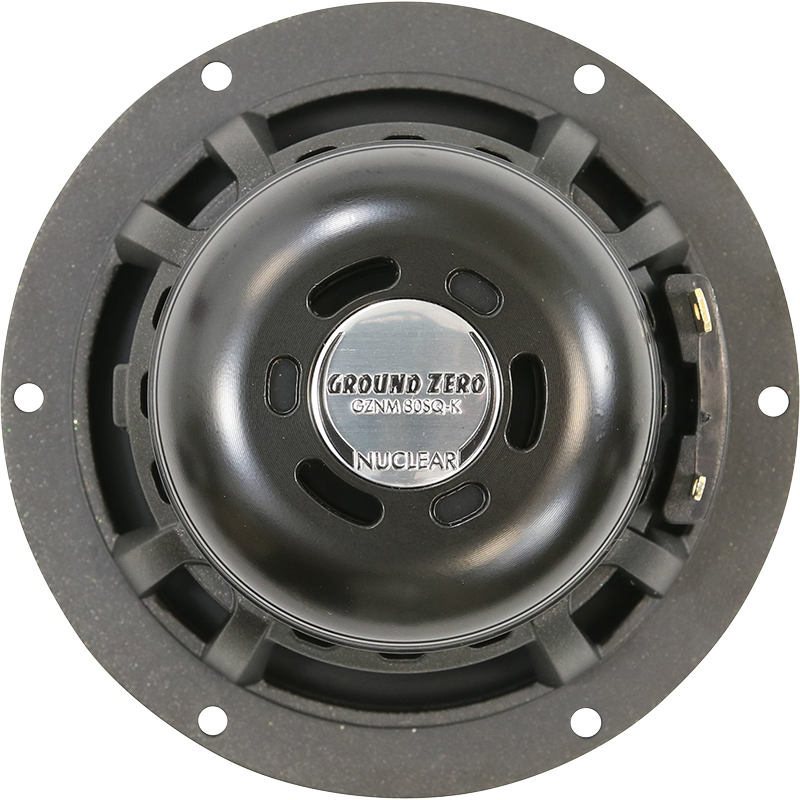

| Model |
High performance midrange speaker |
| Diameter |
80 mm / 3.15″ |
| Power handling (RMS/max.) |
70 / 110 Watts |
| Impedance |
4 Ohms |
| Efficiency |
88 dB |
| Frequency Response |
150 Hz – 5000 Hz |
| Voice coil |
20 mm / 0.79″ |
| Cone |
Kevlar® |
| Magnet material |
Neodymium |
| Mounting diameter |
77 mm / 3.03″ |
| Mounting depth |
39 mm / 1.54″ |
| Resonance frequency (Fs) |
97 Hz |

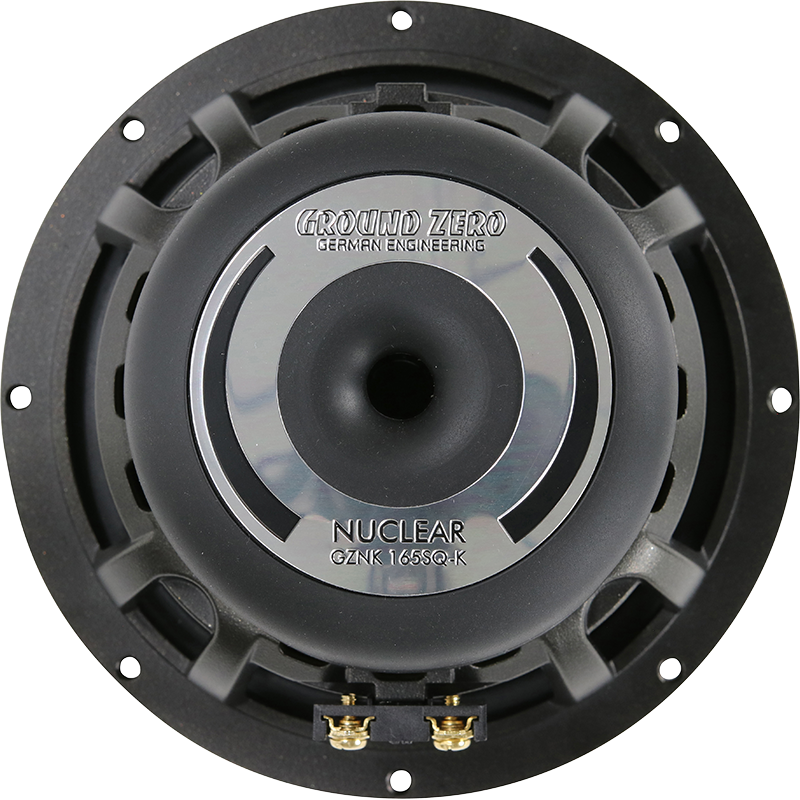

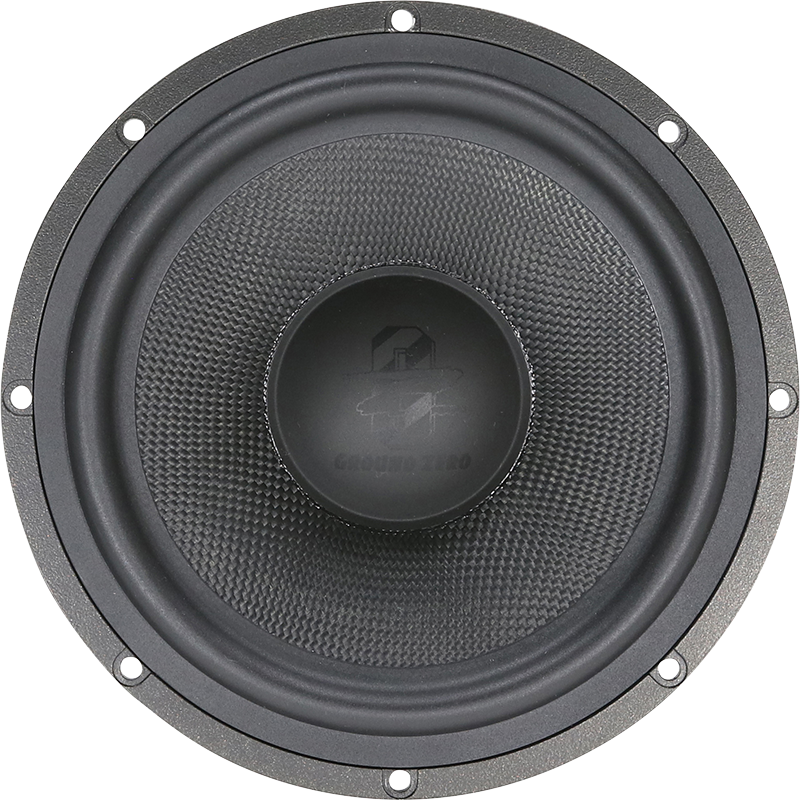

| Model |
High-quality SQ midwoofer |
| Diameter |
165 mm / 6.5″ |
| Power handling (RMS/max.) |
130 / 190 Watts |
| Impedance |
4 Ohms |
| Efficiency |
88 dB |
| Frequency Response |
40 Hz – 5 kHz |
| Voice coil |
38 mm / 1.5″ |
| Cone |
Kevlar |
| Magnet material |
Neodymium-ferrite hybrid system |
| Mounting Ø |
144 mm / 5.67″ |
| Mounting depth |
70 mm / 2.76″ |
| Resonance frequency (Fs) |
43 Hz |
